30m3 16bar Carbon Steel Stationary Cryogenic Liquid Argon Tank Price For Filling Station

Short Description:

30m3 16bar Carbon Steel Stationary Cryogenic Liquid Argon Tank Price For Filling Station Product Description Description of cryogenic tank cryogenic liquid storage tank is for double wall, the inner material adopted S30408 stainless steel,the outer material useing Q245R,carbon steel. It conclude vertical and horizontal structure, adopt the use of vacuum powder adiabatic, with the advantage of compact structure , low issuance date,small footprint,centralized control...


  • Place of Origin: China
  • Shipping: By sea
  • Product Detail

    Product Tags

    30m3 16bar Carbon Steel Stationary Cryogenic Liquid Argon Tank Price For Filling Station
    Product Description

    Description of cryogenic tank

    cryogenic liquid storage tank is for double wall, the inner material adopted S30408 stainless steel,the outer material useing Q245R,carbon steel. It conclude vertical and horizontal structure, adopt the use of vacuum powder adiabatic, with the advantage of compact structure , low issuance date,small footprint,centralized control, safe,reliable, easy operation and maintenance.
    Product parameters
    Model
    Effective volume
    (M3)
    Working pressure
    (Bar)
    Dimension
    (mm)
    Weight
    (Kg)
    CFL-5/1.6
    5
    16
    Φ2000*5130
    3945
    CFL-10/1.6
    10
    16
    Φ2000*7895
    6787
    CFL-15/1.6
    15
    16
    Φ2400*7552
    8628
    CFL-20/1.6
    20
    16
    Φ2400*9371
    10744
    CFL-25/1.6
    25
    16
    Φ2700*8980
    13500
    CFL-30/1.6
    30
    16
    Φ2700*10310
    14640
    CFL-50/1.6
    50
    16
    Φ3100*12058
    23370
    Product production process

    Product Features:

    1. Inner vessel: S30408 material which is suitable for cryogenic working condition is adopted. The structure design is optimized and reasonable. 2. Inner pipeline: The flexible design and inspection is to ensure the quality and appearance of the products. Unique energy-saving pipeline design can ensure the safe use of the product in any medium. 3. Outer vessel: Using Q245R materials, it is equipped with special stainless steel transport support, and lateral lifting lugs to transport easily and reduce the installation cost greatly. 4. Vacuum insulation: We use unique leak detection process, high quality pearl sand, high vacuum multilayer insulation, special sand irrigation process, so that our products have excellent vacuum insulation performance.

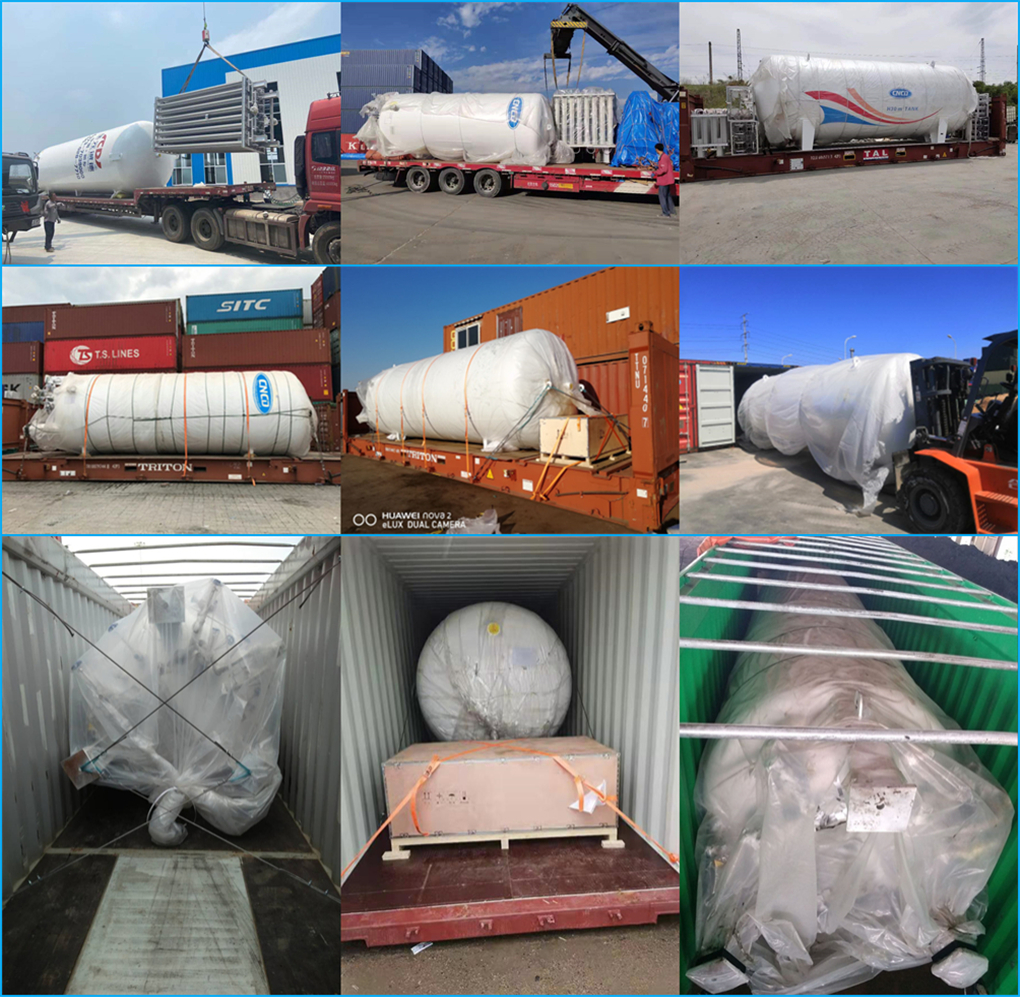

    Packing & Delivery
    Packaging of cryogenic tanks:

    1.20ft &40ft container
    2.No packing or Seaworthy packing
    3.Customer’s Request
    Delivery of cryogenic tank:
    We have agent forwarder,can help customers find best freight cost.

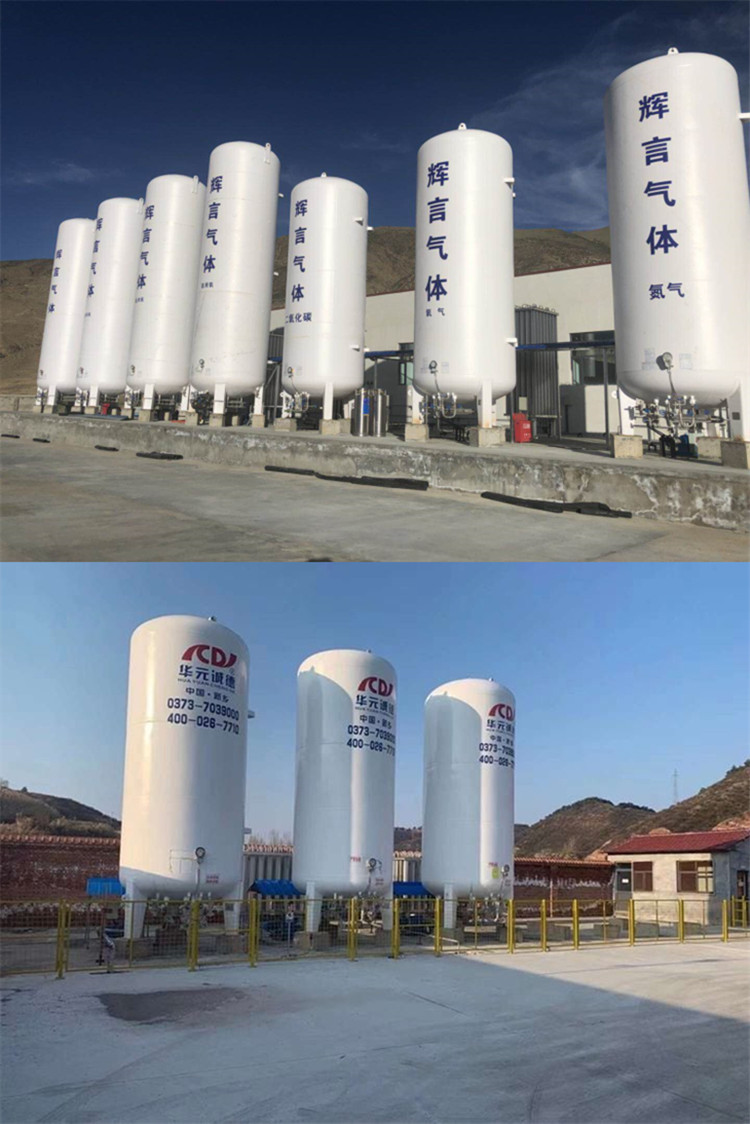

    Our Projects
    Domestic project site
    Foreign project site
    Recommend Products
    cryogenic pump
    ambient vaporizer
    liquid dewar cylinder

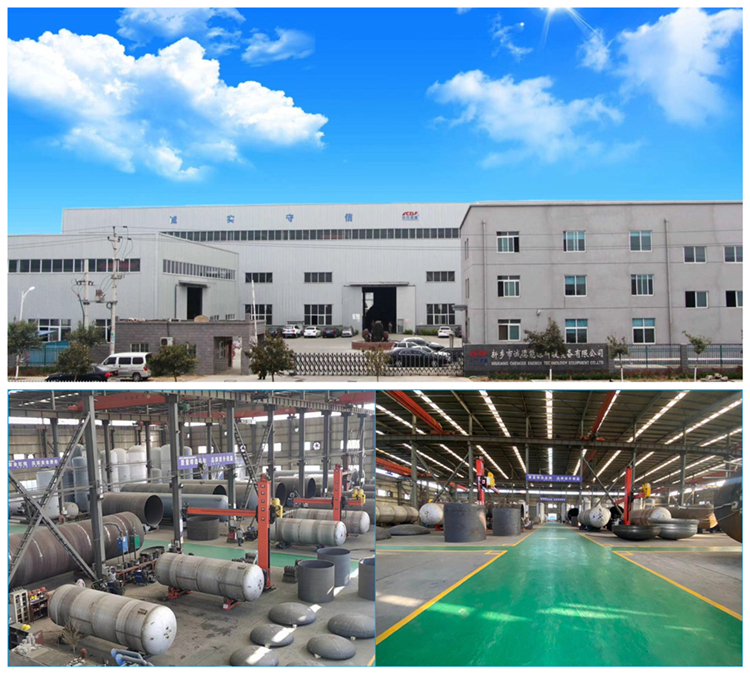

    Company Profile
    Xinxiang Chengde Energy Technology Equipment Co., Ltd. (original Chengde Gas Equipment Co., Ltd.) was founded in 2002, company is located in Industrial Park, Fengquan district, Xinxiang city, Henan province. with its south to the yellow river and north to Taihang Mountain, with beautiful scenery and convenient transportation. The company has been committed to the pressure vessels,Low-temperature cryogenic equipment and gas equipment in the field of research and development, design, manufacture and installation.


    The company more than 30,000 square meter for workshop.Our company have exported products to foreign countries more than 19 years,have rich experience in production and exported ,products have exported to more than 35 countries ,also have branch office in the Vietnam.
    Certifications
    Exhibition
    Our company often participates in domestic ,foreign exhibitions .if possible, we hope you can come to visited exchange.
    Customer Photos
    Many customers come to visit our company, they are very satisfied with our products and trust more.

    FAQ

    Q: What is your production standard? Can you manufacture your products under ASME standard? A: Our company has been able to design, manufacture and install pressure vessels ,It also has a pressure pipe installation certificate and ISO9001 quality certificate. If you ask for ASME, we are able to manufacture your products under ASME standard. Q: What about warranty? A: Equipment warranty is 12 months from the date on which the equipment has been delivered, whichever comes first. Q:How to order cryogenic liquid storage tank? A:Please tell us know: 1. Storage capacity; 2. Working pressure; 3. Storage medium(LO2, LN2, LAr, LCO2 or LNG); 4. Use: industrial production, food or other; 5. Form: vertical or horizontal; Q:How to package the goods at the time of delivery? A:We take different packing approaches according to specific requirements. Wrapped bags and wooden boxes are commonly used for waterproof, dust-proof and shock-proof purposes, ensuring that every equipment remains in perfect condition after delivery.
