20m3 16bar Double Wall Vacuum Tank Stationary Cryogenic Storage Tank For Metal Application

Short Description:

20m3 16bar Double Wall Vacuum Tank Stationary Cryogenic Storage Tank For Metal Application Product Description Description of cryogenic tank cryogenic liquid storage tank is for double wall, the inner material adopted S30408 stainless steel,the outer material useing Q245R,carbon steel. It conclude vertical and horizontal structure, adopt the use of vacuum powder adiabatic, with the advantage of compact structure , low issuance date,small footprint,centra...


  • Place of Origin: China
  • Shipping: By sea
  • Product Detail

    Product Tags

    20m3 16bar Double Wall Vacuum Tank Stationary Cryogenic Storage Tank For Metal Application
    Product Description

    Description of cryogenic tank

    cryogenic liquid storage tank is for double wall, the inner material adopted S30408 stainless steel,the outer material useing Q245R,carbon steel. It conclude vertical and horizontal structure, adopt the use of vacuum powder adiabatic, with the advantage of compact structure , low issuance date,small footprint,centralized control, safe,reliable, easy operation and maintenance.
    Product parameters
    Model
    Effective volume
    (M3)
    Working pressure
    (Bar)
    Dimension
    (mm)
    Weight
    (Kg)
    CFL-5/1.6
    5
    16
    Φ2000*5130
    3945
    CFL-10/1.6
    10
    16
    Φ2000*7895
    6787
    CFL-15/1.6
    15
    16
    Φ2400*7552
    8628
    CFL-20/1.6
    20
    16
    Φ2400*9371
    10744
    CFL-25/1.6
    25
    16
    Φ2700*8980
    13500
    CFL-30/1.6
    30
    16
    Φ2700*10310
    14640
    CFL-50/1.6
    50
    16
    Φ3100*12058
    23370
    Product production process

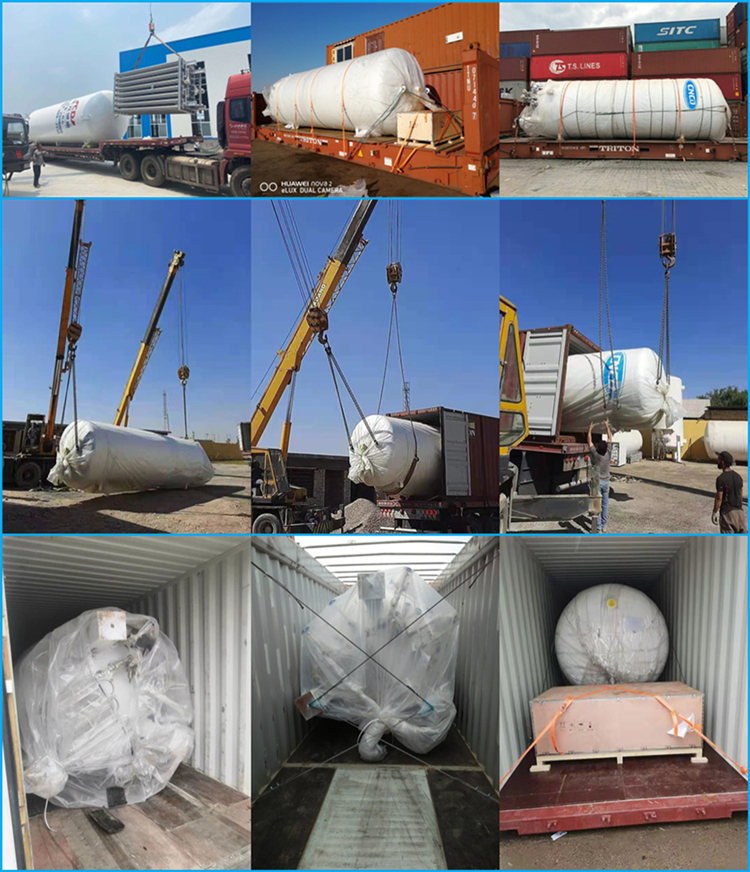

    Packing & Delivery
    Packaging of cryogenic tanks:

    1.20ft &40ft container
    2.No packing or Seaworthy packing
    3.Customer’s Request
    Delivery of cryogenic tank:
    We have agent forwarder,can help customers find best freight cost.
    Our Projects
    Domestic project site
    Foreign project site
    Recommend Products
    cryogenic pump
    ambient vaporizer
    liquid dewar cylinder

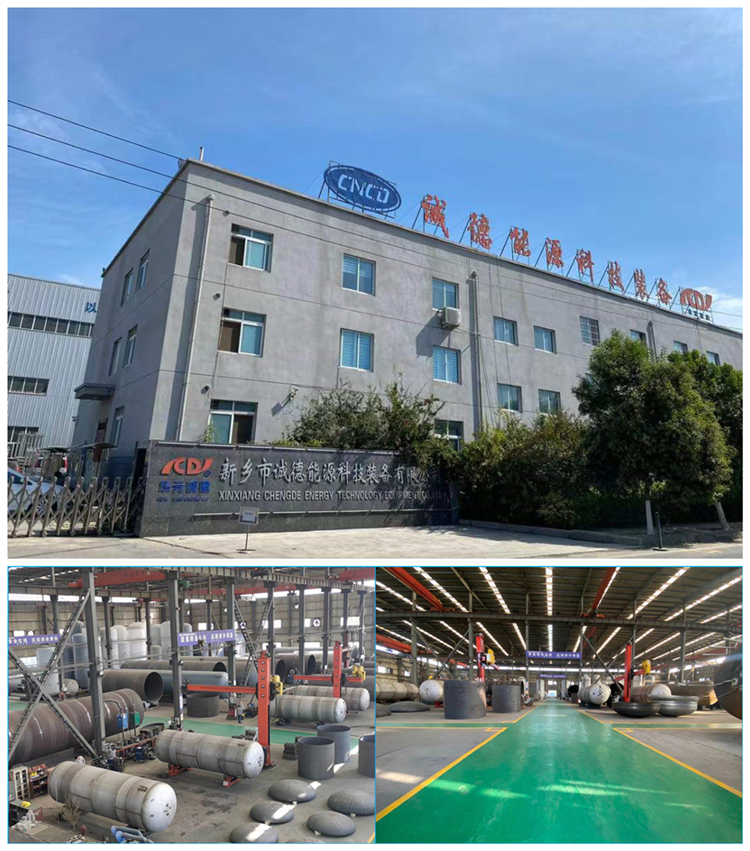

    Company Profile
    Xinxiang Chengde Energy Technology Equipment Co., Ltd. (original Chengde Gas Equipment Co., Ltd.) was founded in 2002, company is located in Industrial Park, Fengquan district, Xinxiang city, Henan province. with its south to the yellow river and north to Taihang Mountain, with beautiful scenery and convenient transportation. The company has been committed to the pressure vessels,Low-temperature cryogenic equipment and gas equipment in the field of research and development, design, manufacture and installation.


    The company more than 30,000 square meter for workshop.Our company have exported products to foreign countries more than 19 years,have rich experience in production and exported ,products have exported to more than 35 countries ,also have branch office in the Vietnam.

    Our Advantages

    1. Our own factory with more than 20 years experience in production, manufacture and installation. 2. We provide OEM customized service to produce and process products according to your drawings and requirements. 3. Our professional R&D and QC team can strictly control the product quality to meet your requirements. 4. We provide the best service according to your requirements, from production, processing to packing, etc. 5. Our products are of high quality and low price, and the delivery is on time. 6. We have a professional sales team to provide you with fast and enthusiastic service throughout the process.
    Certifications
    Exhibition
    Our company often participates in domestic ,foreign exhibitions .if possible, we hope you can come to visited exchange.
    Customer Photos
    Many customers come to visit our company, they are very satisfied with our products and trust more.
