10m3 16bar Stationary Cryogenic Liquid Gas Pressure Vessel Lox Storage Tank Price
10m3 16bar Stationary Cryogenic Liquid Gas Pressure Vessel Lox Storage Tank Price
Product Description
Description of cryogenic tank
cryogenic liquid storage tank is for double wall, the inner material adopted S30408 stainless steel,the outer material useing Q245R,carbon steel. It conclude vertical and horizontal structure, adopt the use of vacuum powder adiabatic, with the advantage of compact structure , low issuance date,small footprint,centralized control, safe,reliable, easy operation and maintenance.
Product parameters
|
Model
|
Effective volume
(M3) |
Working pressure
(Bar) |
Dimension
(mm) |
Weight
(Kg) |
|
CFL-5/1.6
|
5
|
16
|
Φ2000*5130
|
3945
|
|
CFL-10/1.6
|
10
|
16
|
Φ2000*7895
|
6787
|
|
CFL-15/1.6
|
15
|
16
|
Φ2400*7552
|
8628
|
|
CFL-20/1.6
|
20
|
16
|
Φ2400*9371
|
10744
|
|
CFL-25/1.6
|
25
|
16
|
Φ2700*8980
|
13500
|
|
CFL-30/1.6
|
30
|
16
|
Φ2700*10310
|
14640
|
|
CFL-50/1.6
|
50
|
16
|
Φ3100*12058
|
23370
|
Product production process

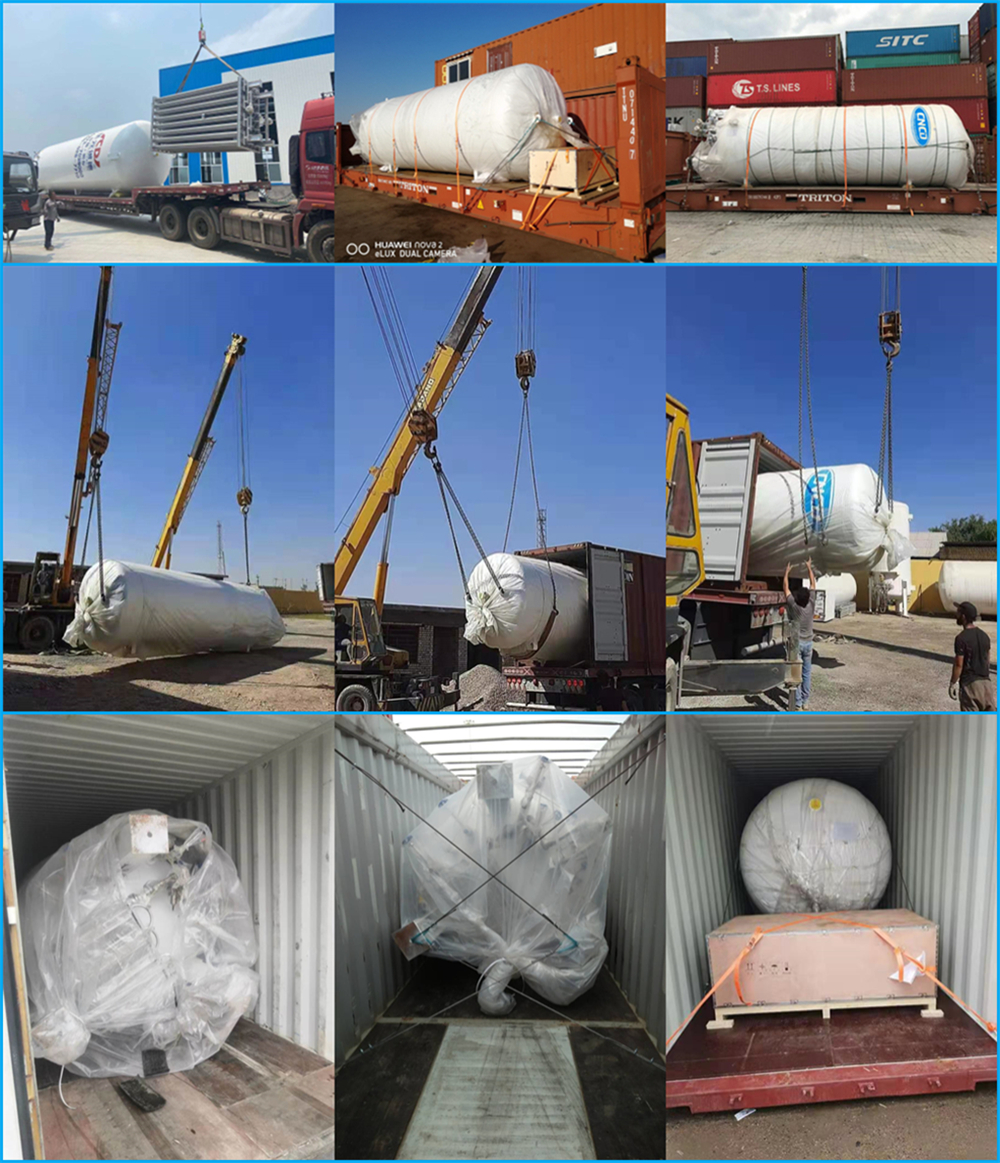

Packing & Delivery
Packaging of cryogenic tanks:
1.20ft &40ft container
2.No packing or Seaworthy packing
3.Customer’s Request
Delivery of cryogenic tank:
Delivery of cryogenic tank:
We have agent forwarder,can help customers find best freight cost.

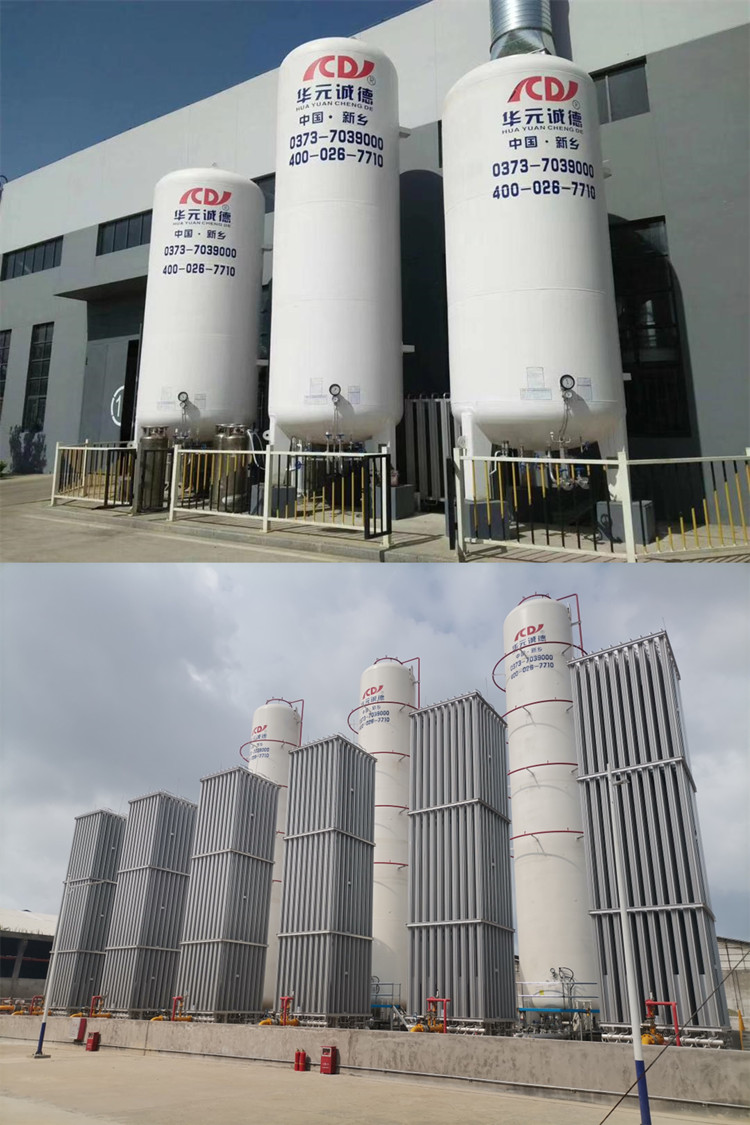

Our Projects
Domestic project site
Foreign project site
Recommend Products
cryogenic pump
ambient vaporizer
liquid dewar cylinder

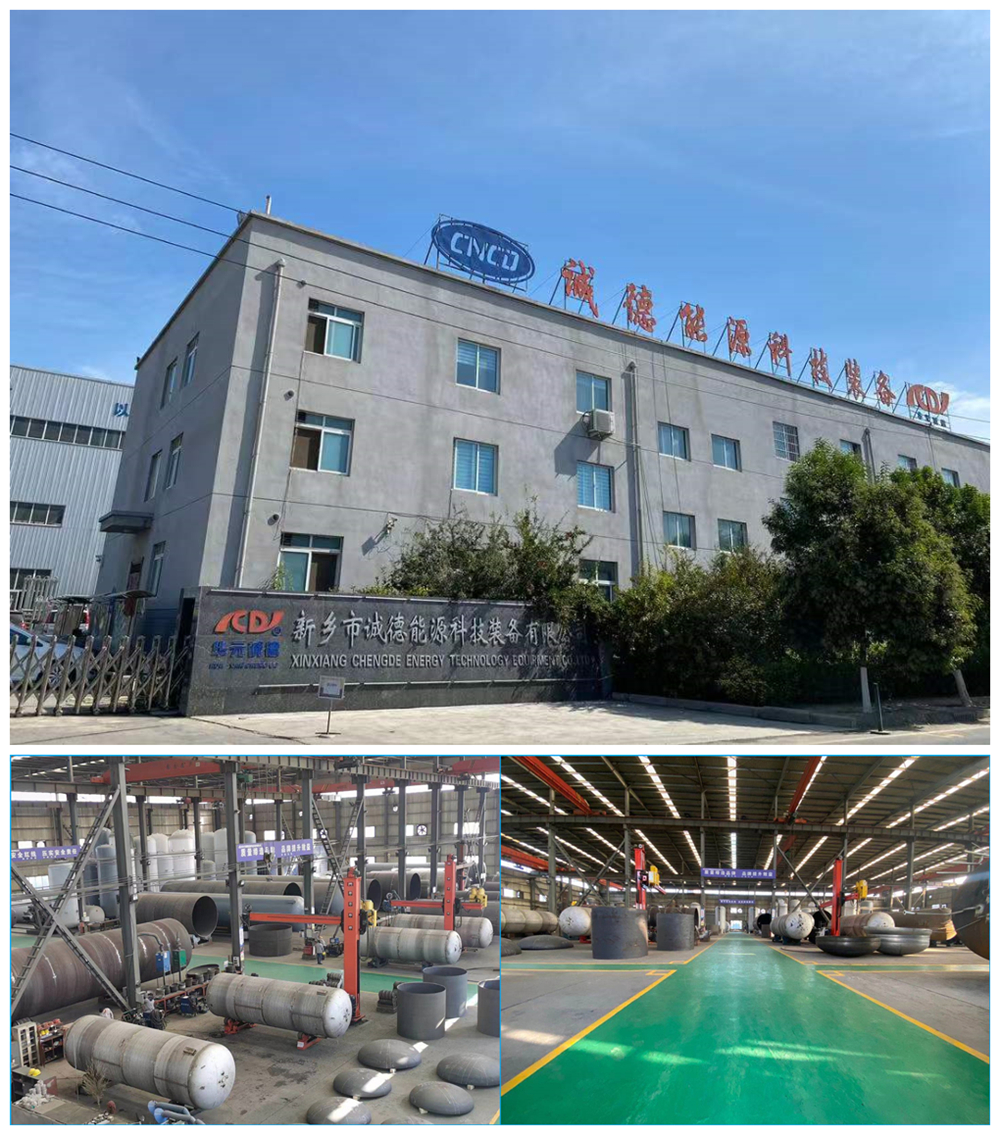

Company Profile
Xinxiang Chengde Energy Technology Equipment Co., Ltd. (original Chengde Gas Equipment Co., Ltd.) was founded in 2002, company is located in Industrial Park, Fengquan district, Xinxiang city, Henan province. with its south to the yellow river and north to Taihang Mountain, with beautiful scenery and convenient transportation. The company has been committed to the pressure vessels,Low-temperature cryogenic equipment and gas equipment in the field of research and development, design, manufacture and installation.
The company more than 30,000 square meter for workshop.Our company have exported products to foreign countries more than 19 years,have rich experience in production and exported ,products have exported to more than 35 countries ,also have branch office in the Vietnam.
The company more than 30,000 square meter for workshop.Our company have exported products to foreign countries more than 19 years,have rich experience in production and exported ,products have exported to more than 35 countries ,also have branch office in the Vietnam.
Our services
Pre-sale services: 1. Providing professional technical support. 2. Send the product catalog and instruction manual. 3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time! 4. Personal call or visit are warmly welcome. Sale of services: 1. We promise honest and fair, it’s our pleasure to serve you as your purchasing consultant. 2. We guarantee punctuality, quality and quantities strictly implement the terms of contract… After-sales service: 1. buy our products for one year warranty and life long maintenance. 2. 24-hour telephone service.
Certifications
Exhibition
Our company often participates in domestic ,foreign exhibitions .if possible, we hope you can come to visited exchange.
Customer Photos
Many customers come to visit our company, they are very satisfied with our products and trust more.
Are you interested in any more info? If yes, drop us a message!
Write your message here and send it to us
